Model | SWF2D09 | SWF2D12 | SWF2D15 | SWF2D18 | SWF2D24 |
Dim (W×D×H, mm) | 900×800×1100 | 1200×800×1100 | 1500×800×1100 | 1800×800×1100 | 2400×800×1100 |
Dim (W×D×H, in) | 35.4″×31.5″×43.3″ | 47.2″×31.5″×43.3″ | 59.1″×31.5″×43.3″ | 70.9″×31.5″×43.3″ | 94.5″×31.5″×43.3″ |
Temp. (℃) | 2℃~8℃ | 2℃~8℃ | 2℃~8℃ | 2℃~8℃ | 2℃~8℃ |
Temp. (°F) | 35.6°F~46.4°F | 35.6°F~46.4°F | 35.6°F~46.4°F | 35.6°F~46.4°F | 35.6°F~46.4°F |
Adjustable Shelves | 2 layers | 2 layers | 2 layers | 2 layers | 2 layers |
Power(w) | 940 | 940 | 970 | 1150 | 1340 |
Specifications subject to change without notice.
Design

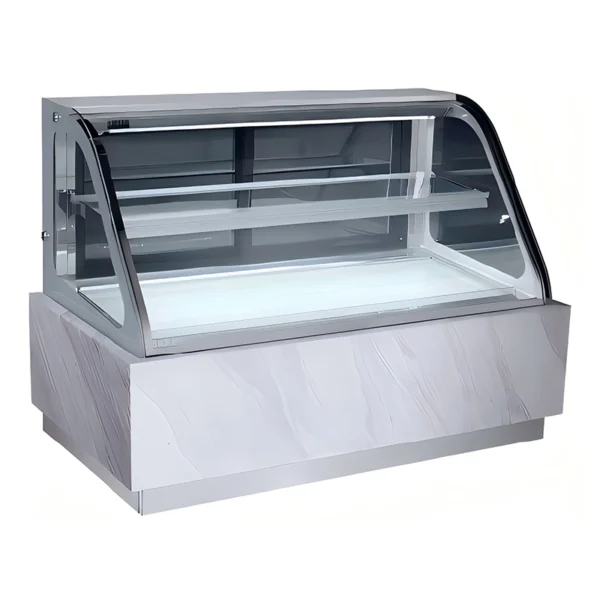

- Icoldbox commercial refrigerated display case features high-efficiency large-capacity merchandising, superior cooling performance, and a stylish anti-fog glass front panel, elegantly showcasing high-end desserts and pastries.
Refrigeration System
- The factory - independently designed capillary system utilizes an eco - friendly R290 hydrocarbon refrigerant (with zero ODP and low GWP), significantly cutting down greenhouse gas emissions to contribute to achieving “carbon neutrality”.
- The mature and high-quality refrigeration system is equipped with a branded compressor, featuring high refrigeration efficiency and energy-saving emission reduction.
- The optional variable-frequency temperature sensor can control the internal temperature of the cabinet within the range of 2°C-8°C (35.6°F-46.4°F), ensuring excellent food preservation, especially suitable for preserving baked goods and cold cooked foods.
- Copper tube fin heat dissipation rapidly dissipates heat, keeping equipment at optimal working temperature to boost efficiency and enhance stability/reliability.
- The condensing unit is installed at the bottom, facilitating maintenance and cleaning, and items can be placed on the top.
- Air-cooled refrigeration mode, it features fast cooling speed, precise temperature control, frost-free and maintenance-free design, good freshness preservation effect, and more flexible storage space.
Cabinet Construction
- Appearance: The front panel and side panels can be made of optional quartz stone or wood-like PVC materials, which are suitable for various store styles.
- Dight-angle double-layer anti-fog coated glass front panel and side glass panels, which are clear and beautiful.
- Heat insulation: The cabinet structure is foamed on-site with high-density polyurethane insulation material, whose Ozone Depletion Potential (ODP) and Global Warming Potential (GWP) are both zero.
Rear Doors
- Equipped with 2 rear sliding glass doors for easy access from the back.
Shelving
- It features multiple storage layers with transparent tempered glass as the shelves, which are sturdy and aesthetically pleasing, allowing for classified display of different cakes. Lighting
Lighting
- Energy saving lighting
Model Features
- External digital temperature display with selectable Fahrenheit (°F)/Celsius (°C).
- Evaporator with optional epoxy resin coating for anti-corrosion and durability.
Electrical
- The equipment is factory pre-wired for direct connection to a single-phase 220V power supply with 10A/16A dedicated sockets. Includes power cord and plug kit.
- Standard triangular plug (connectors compliant with relevant standards of different countries are available).
Optional Features/accessories Upcharge And Lead Times May Apply.
- Optional 1-3 independent wet/dry zones, freely customizable to suit cream cakes, pastries, etc.
- Customizable humidity ranges (dry: 40%-50%, wet: 65%-75% with fine-tuning) and independent controls for tailored freshness.
- Available in optional widths: 900mm, 1200mm, 1500mm, 1800mm, 2400mm.
- Refrigeration method optional (direct-cooled or air-cooled)
- Variable frequency temperature sensor (optional)
- Evaporator with optional epoxy resin coating
- Additional shelves (stainless steel version optional)
- Supports and casters customizable as required
- Connectors customizable for European, British standards, etc.
- Shape, thickness, material, cooling method, and internal structure all customizable
