Cooling Type:Direct-Cooled

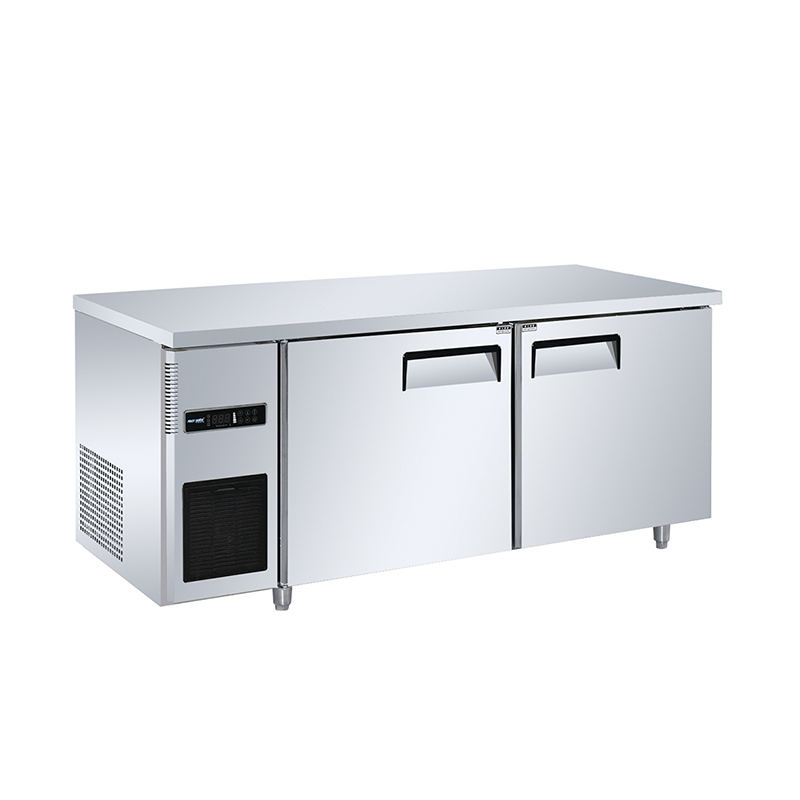

Model | AWF012C1-GN | AWF027C2-GN | AWF042C3-GN | AWF012D1-GN | AWF027D2-GN | AWF042D3-GN | AWF015C1-P | AWF035C2-P | AWF015D1-P | AWF035D2-P | AWF055D3-P |
Dim (W×D×H, mm) | 790×700×850 | 1250×700×850 | 1710×700×850 | 790×700×850 | 1250×700×850 | 1710×700×850 | 880×800×850 | 1430×800×850 | 880×800×850 | 1430×800×850 | 1990×800×850 |
Dim (W×D×H, in) | 31.1″×27.6″×33.5″ | 49.2″×27.6″×33.5″ | 67.3″×27.6″×33.5″ | 31.1″×27.6″×33.5″ | 49.2″×27.6″×33.5″ | 67.3″×27.6″×33.5″ | 34.6″×31.5″×33.5″ | 56.3″×31.5″×33.5″ | 34.6″×31.5″×33.5″ | 56.3″×31.5″×33.5″ | 78.3″×31.5″×33.5″ |
Temp (°C) | 0～5℃ | 0～5℃ | 0～5℃ | -12~-18°C | -12~-18°C | -12~-18°C | 0~5°C | 0~5°C | -18~-22°C | -18~-22°C | -18~-22°C |
Temp (°F) | 32～41°F | 32～41°F | 32～41°F | 10.4~-0.4°F | 10.4~-0.4°F | 10.4~-0.4°F | 32~41°F | 32~41°F | -0.4~-7.6°F | -0.4~-7.6°F | -0.4~-7.6°F |
Plates | 4×1/1GN | 8×1/1GN | 12×1/1GN | 4×1/1GN | 8×1/1GN | 12×1/1GN | 4×1/1GN | 8×1/1GN | 4×1/1GN | 8×1/1GN | 12×1/1GN |
Power(W) | 300 | 350 | 400 | 500 | 600 | 700 | 300 | 350 | 500 | 600 | 700 |
Specifications subject to change without notice.
Design
- ICOLDBOX is committed to using high-quality materials and efficient refrigeration systems, continuously updating production processes and technologies to provide users with lower product temperatures, lower usage costs, excellent food safety, and the best personalized customization services to achieve the most suitable solutions.
Refrigeration System
- The factory - independently designed capillary system utilizes an eco - friendly R290 hydrocarbon refrigerant (with zero ODP and low GWP), significantly cutting down greenhouse gas emissions to contribute to achieving “carbon neutrality”.
- The mature and high - quality refrigeration system is outfitted with a branded compressor, featuring high refrigeration efficiency along with energy - saving and emission - reduction capabilities.
- The optional variable - frequency temperature sensor allows for precise temperature control within 1°C inside the cabinet, ensuring the optimal food preservation condition.
- Copper tube fin heat dissipation rapidly dissipates heat, keeping the equipment at the optimal working temperature, improving efficiency and enhancing stability and reliability.
- The condensing unit offers both top and bottom installation options: Top-mounted: Ensures more uniform cooling while maximizing bottom storage space. Bottom-mounted: Facilitates easier maintenance and cleaning, with the top surface available for storage.
- Adopting the air - cooled refrigeration mode, it has the characteristics of fast cooling speed, precise temperature control, a frost - free and maintenance - free design, a good freshness - preservation effect, and more flexible storage space.
Cabinet Construction
- Exterior visible parts are made of high-quality stainless steel. The back, top and bottom panels are made of galvanized sheets (full stainless steel is also optional).
- The thickened top work surface and interior feature stainless steel construction – anti - corrosive, durable, and easy to clean.
- Optional Water-Retaining Strip (50mm/100mm/150mm) blocks spills, keeps workspace dry
- Insulation - The entire cabinet structure and solid doors are foamed on - site with high - density polyurethane insulation material. The thickness is increased by 20%, effectively enhancing the thermal insulation performance for better energy - saving. Its Ozone Depletion Potential (ODP) and Global Warming Potential (GWP) are both zero.
- High-quality stainless steel insert pan columns can hold 8 standard GN pans with a spacing of 110mm (4.33 in).
Doors
- Stainless steel housing with fine sandblasted finish ensures a smooth, aesthetically pleasing appearance that's easy to clean.
- Sealed self-closing door with high-quality detachable & cleanable door seals ensures excellent sealing to prevent cold air leakage.
- Magnetic door hinge chain; automatic return hinge with positive sealing self-closing function and 120° open hold feature.
Shelving
- The tray - inserting columns are made of the same material as the interior of the cabinet, featuring sturdiness, durability, and easy - to - clean property. (Trays not included)
Lighting
- Optional interior LED lighting
Model Features
- External digital temperature display with selectable Fahrenheit (°F)/Celsius (°C).
- Evaporator with optional epoxy resin coating for anti-corrosion and durability.
Electrical
- The equipment is factory pre-wired for direct connection to a single-phase 220V power supply with 10A/16A dedicated sockets. Includes power cord and plug kit.
- Standard triangular plug (connectors compliant with relevant standards of different countries are available).
Optional Features/accessories Upcharge And Lead Times May Apply.
- Condenser unit installation position is optional (left or right side).
- Optional stainless steel back/bottom panels
- Optional Water - Retaining Strip (50mm/100mm/150mm Height)
- Refrigeration method optional (direct-cooled or air-cooled)
- Variable frequency temperature sensor (optional)
- Evaporator with optional epoxy resin coating
- Optional interior LED lighting
- Additional shelves (optional stainless steel wire shelves, glass shelves, perforated shelves)
- Supports and casters customizable as required
- Connectors customizable for European, British standards, etc.
- The length, width, height, style, insulation layer thickness, stainless steel material (304, 201), refrigeration method, internal structure, and other special requirements can all be customized.
