Model | BF06C1-GL | BF10C2-GL | BF14C3-GL | BZ06C1-GL | BZ10C2-GL | BZ10C2-GL |

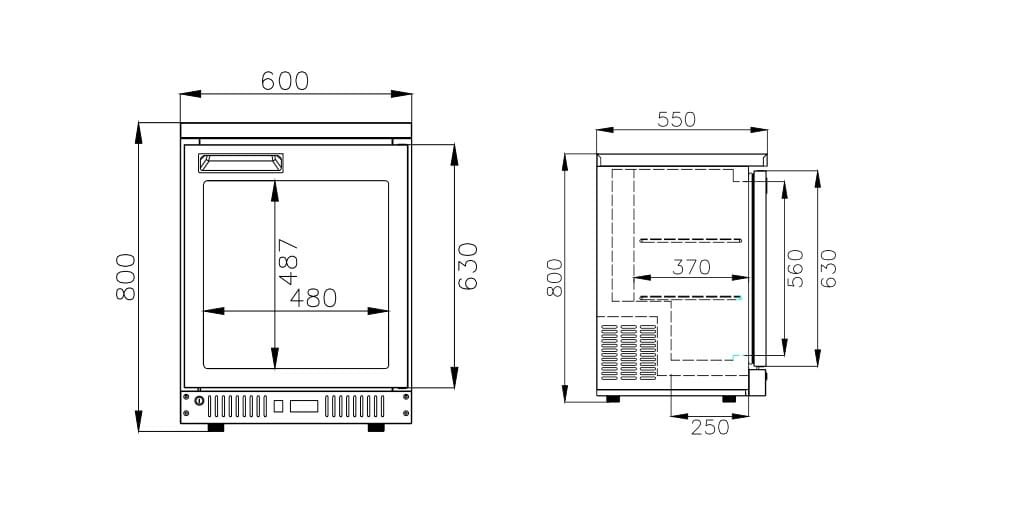

Dim (W×D×H, mm) | 600×550×800 | 1000×550×800 | 1400×550×800 | 600×550×800 | 1000×550×800 | 1400×550×800 |
Dim (W×D×H, in) | 23.6×21.7×31.5 | 39.4×21.7×31.5 | 55.1×21.7×31.5 | 23.6×21.7×31.5 | 39.4×21.7×31.5 | 55.1×21.7×31.5 |
Temp. (°C) | 4~8°C | 4~8°C | 4~8°C | 4~8°C | 4~8°C | 4~8°C |
Temp. (°F) | 39.2~46.4°F | 39.2~46.4°F | 39.2~46.4°F | 39.2~46.4°F | 39.2~46.4°F | 39.2~46.4°F |
Volume (L) | 100 | 180 | 270 | 117 | 218 | 319 |
Cooling Type | Air – Cooled | Air – Cooled | Air – Cooled | Direct – Cooled | Direct – Cooled | Direct – Cooled |
Power (W) | 280 | 340 | 400 | 240 | 300 | 360 |
Specifications subject to change without notice.
Design
- ICOLDBOX is committed to using high-quality materials and efficient refrigeration systems, continuously updating production processes and technologies to provide users with lower product temperatures, lower usage costs, excellent food safety, and the best personalized customization services to achieve the most suitable solutions.
Refrigeration System
- The factory - independently designed capillary system utilizes an eco - friendly R290 hydrocarbon refrigerant (with zero ODP and low GWP), significantly cutting down greenhouse gas emissions to contribute to achieving “carbon neutrality”.
- The mature and high - quality refrigeration system is outfitted with a branded compressor, featuring high refrigeration efficiency along with energy - saving and emission - reduction capabilities.
- The optional variable-frequency temperature sensor enables precise temperature control within 4°C to 8°C (39.2°F to 46.4°F).inside the cabinet, ensuring optimal food preservation.
- Copper tube fin heat dissipation rapidly dissipates heat, keeping the equipment at the optimal working temperature, improving efficiency and enhancing stability and reliability.
- The condensing unit is installed at the bottom, facilitating maintenance and cleaning, and items can be placed on the top.
- Two refrigeration methods are available: Air-cooled refrigeration: Features fast cooling speed, precise temperature control, frost-free and maintenance-free operation, excellent fresh-keeping effect, and more flexible storage space. Direct-cooled refrigeration: Boasts a simple structure for easy maintenance, low cost, good moisture retention, low noise, and relatively low energy consumption. However, regular defrosting is required.
Cabinet Construction
- The externally visible parts are made of high-quality stainless steel. The back and bottom panels are made of galvanized sheets (full stainless steel material is also available as an option).
- The thickened top working surface and the interior adopt a stainless steel structure, which is corrosion-resistant, durable and easy to clean.
- The interior is made of high-quality stainless steel, featuring corrosion resistance, durability and easy cleaning.
- Insulation - The entire cabinet structure is foamed with high-density polyurethane insulation material, which has an Ozone Depletion Potential (ODP) of zero and a Global Warming Potential (GWP) of zero.
- High-quality stainless steel heavy-duty frame guide rails, paired with multiple plastic-dipped wire shelves: durable, corrosion-resistant and freely adjustable.
Doors
- Defogging coated tempered glass door, which is clear, aesthetically pleasing and easy to clean.
- Sealed self-closing door, equipped with high-quality detachable and cleanable door gaskets, ensuring excellent sealing performance and preventing cold air leakage.
- Magnetic door hinges; self-resetting hinges with positive sealing self-closing function and 120° opening retention function.
Shelving
- Each section is equipped with 1 height-adjustable heavy-duty PVC-dipped wire shelves. Shelf support pillars are made of the same material as the cabinet interior.
Lighting
- Energy-saving lamps provide uniform illumination.
Model Features
- External digital temperature display with selectable Fahrenheit (°F)/Celsius (°C).
- Evaporator with optional epoxy resin coating for anti-corrosion and durability.
Electrical
- The equipment is factory pre-wired for direct connection to a single-phase 220V power supply with 10A/16A dedicated sockets. Includes power cord and plug kit.
- Standard triangular plug (connectors compliant with relevant standards of different countries are available).
Optional Features/accessories Upcharge And Lead Times May Apply.
- Refrigeration method optional (direct-cooled or air-cooled)
- Variable frequency temperature sensor (optional)
- Evaporator with optional epoxy resin coating
- Additional shelves (optional stainless steel wire shelves, glass shelves, perforated shelves)
- Supports and casters customizable as required
- Connectors customizable for European, British standards, etc.
- Optional stainless steel back/bottom panels
- Capacity, thickness, material and internal structure all customizable
