Specifications/Model | BL-TDE80T2 | BL-TDE120T3 | BL-TDE160T4 |

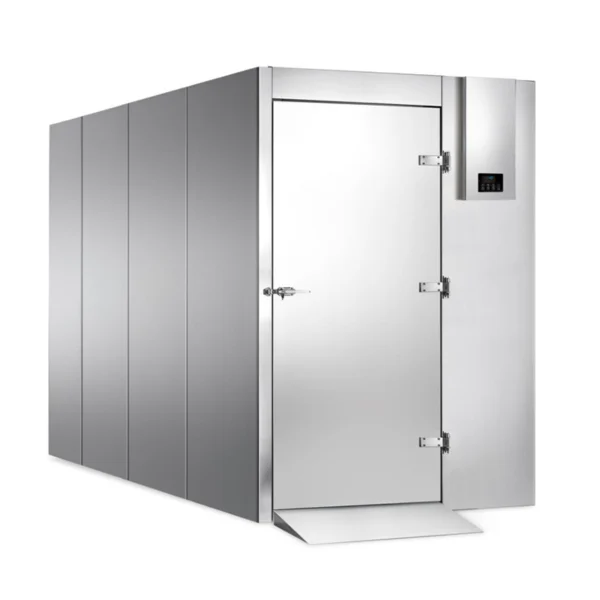

Product Name | Blast Freezer Double trolley Roll in | Blast Freezer Triple trolley Roll in | Blast Freezer Quad trolley Roll in |

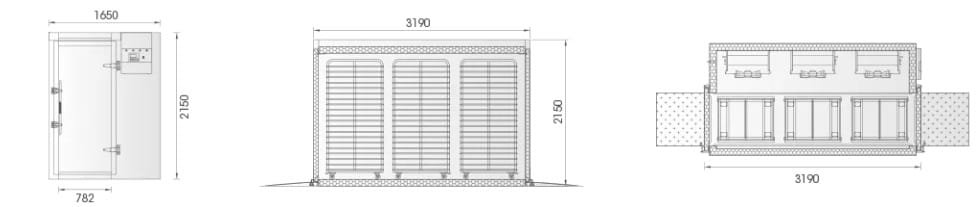

Dim (W×D×H, mm) | 1650 x 2190 x 2150 | 1650 x 3190 x 2150 | 2000 x 4310 x 2150 |
Dim (W×D×H, in) | 65 x 86.2 x 84.6 | 65 x 125.6 x 84.6 | 78.7 x 169.7 x 84.6 |
Voltage | AC380V 3P – 50HZ | AC380V 3P – 50HZ | AC380V 3P – 50HZ |
Power (kW) | 20 | 25 | 30 |
Volume | 80 trays (600x400mm)/2 trolleys | 120 trays (600x400mm)/3 trolleys | 160 trays (600x400mm)/4 trolleys |
Trolley size (mm) | 40 trays (600x800mm)/2 trolleys | 60 trays (600x800mm)/3 trolleys | 80 trays (600x800mm)/4 trolleys |
Platform size (mm) | 675x850x1760 | 675x850x1760 | 765×765 |
Temperature (°C) | +3 ~ -50°C (Operating temp. -35 ~ -40°C) | +3 ~ -50°C (Operating temp. -35 ~ -40°C) | +3 ~ -50°C (Operating temp. -35 ~ -40°C) |
Temperature (°F) | 37.4 ~ -58°F (Operating temp. -31 ~ -40°F) | 37.4 ~ -58°F (Operating temp. -31 ~ -40°F) | 37.4 ~ -58°F (Operating temp. -31 ~ -40°F) |
Cooling type | Air-cooled | Air-cooled | Air-cooled |
Refrigerant | R-404a / R-507 | R-404a / R-507 | R-404a / R-507 |

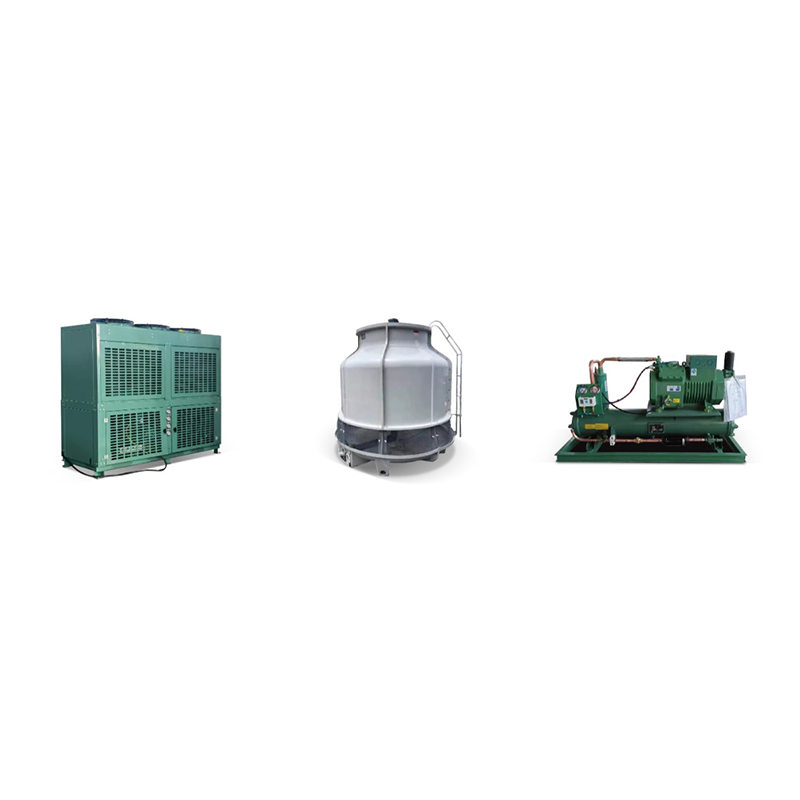

Heat dissipation mode | External unit (Air-cooled / Water-cooled) | External unit (Air-cooled / Water-cooled) | External unit (Air-cooled / Water-cooled) |
Specifications subject to change without notice.
Design
- ICOLDBOX focuses on high-quality materials and efficient freezing systems, continuously upgrading processes to deliver fast freezing, low operational costs, and tailored solutions for large food factories.
- Ideal for mass, continuous production with minimal labor, fitting large workshop layouts.
Refrigeration System
- Equipped with 30P+30P Copeland cascade compressor unit for powerful cooling, ensuring stable and efficient freezing.
- Uses eco-friendly refrigerants (R-404a/R23) for reliable performance in industrial settings.
- Air-cooled design with external rotor fans (full copper steel shell) for rapid, uniform cooling; avoids frost, reducing maintenance.
- Precise temperature control via branded thermostat, supporting.
- +3°C "soft" cooling (for delicate foods).
- +3°C "hard" cooling (for thick/oily foods).
- -18°C rapid cooling (general use).
Cabinet Construction
- All visible parts—including the inner tank, shell, top/bottom/back, and solid door—are made of food-grade 304 stainless steel, being corrosion-resistant and easy to clean.
- Rounded corner design on door inner tanks to prevent dirt/bacteria buildup; deepened cabinet fits 600x400mm baking trays and portion pans.
- High-density (53) polyurethane foam insulation (100mm thick, customizable), enhancing thermal retention and energy efficiency.
Control System
- Smart digital control panel with one-key operation, reducing training costs and operational errors.
Electrical
- Factory standard configuration: AC380V 3-phase - 50Hz; voltage/frequency can be customized.
- Regional standard plugs (such as European standards, British standards, etc.) can be configured as needed.
Optional Features/accessories Upcharge And Lead Times May Apply.
- Customizable insulation thickness, stainless steel grade (304/201).
- Optional temperature ranges (-40°C/-60°C/-80°C).
- Additional trolleys/trays
- Customizable power connectors (compliant with EU/UK standards).
