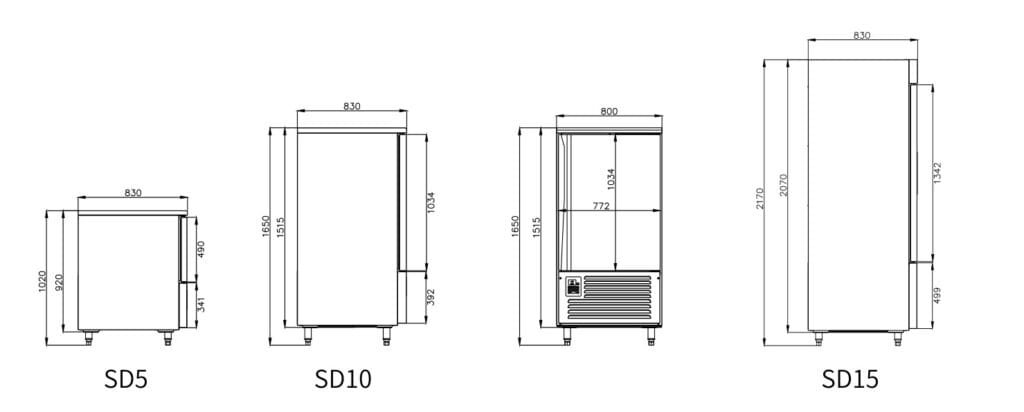

Model | SD3 | SD5 | SD10 | SD15 |
Dim (W×D×H, mm) | 800×830×925 | 800×830×1015 | 800×830×1645 | 800×830×2170 |
Dim (W×D×H, in) | 31.5×32.7×36.4 | 31.5×32.7×39.9 | 31.5×32.7×64.8 | 31.5×32.7×85.4 |
Temp. (°C) | -45~0℃ | -45~0℃ | -45~0℃ | -45~0℃ |
Temp. (°F) | -49~32℉ | -49~32℉ | -49~32℉ | -49~32℉ |
Cooling Type | Air-cooled | Air-cooled | Air-cooled | Air-cooled |
Plates (400×600mm) | 3 trays | 5 trays | 10 trays | 15 trays |
Tray Pitch (Metric, mm) | 70mm | 70mm | 70mm | 70mm |
Tray Pitch (Imperial, in) | 2.8″ | 2.8″ | 2.8″ | 2.8″ |
Power (W) | 805W | 906W | 1486W | 2200W |
Voltage/Frequency | 220V/50Hz | 220V/50Hz | 220V/50Hz | 380V/50Hz |
Specifications subject to change without notice.
Design
- IColdbox is committed to providing efficient and reliable commercial freezing solutions for the global food industry. Leveraging innovative technologies and customized services, we help enterprises improve production efficiency and ensure food quality. To meet diverse production needs, we offer customized services covering both internal and external components, fully satisfying application requirements across various scenarios.
Refrigeration System
- Powered by an imported brand compressor, paired with a wide-fin evaporator, the system delivers strong cooling performance and stable operation, ensuring consistent freezing results even under high-frequency use.
- Uses R-404a refrigerant, compatible with industrial-grade cooling demands, ensuring efficient heat exchange and reliable temperature control.
- Boasts versatile cooling modes:
- + 3°C soft rapid cooling: Ideal for delicate foods like rice, vegetables, and fried items, preserving texture without over-freezing.
- +3°C hard rapid cooling: Suitable for thick, oily, or large-sized foods, ensuring thorough cooling without core temperature lag.
- -18°C flash freezing mode: It can quickly pass through the critical zone of large ice crystal formation, minimizing cell damage to the greatest extent — especially suitable for various ingredients such as pastries, ice cream mixes, fruits, vegetables and semi-finished products, cooked foods and pre-prepared dishes, rice, noodles and quick-frozen pasta products, desserts and ice cream products, etc.
- Variable-speed powerful exhaust fans adjust airflow intensity with pressure changes, reducing frost buildup and balancing internal pressure, maintaining optimal freezing conditions.
- Cooling capacity spans 3°C to -40°C, with precise control over rapid freezing (90~3°C/90MIN) and deep freezing (90~-18°C/240MIN) cycles.
Cabinet Construction
- Exterior and interior made of high-quality 304 stainless steel , resistant to corrosion, easy to clean, and durable in high-humidity kitchen environments.
- High-density polyurethane insulation foam, applied on-site for the entire cabinet and doors, enhances thermal retention, reduces energy loss, and supports stable low-temperature operation.

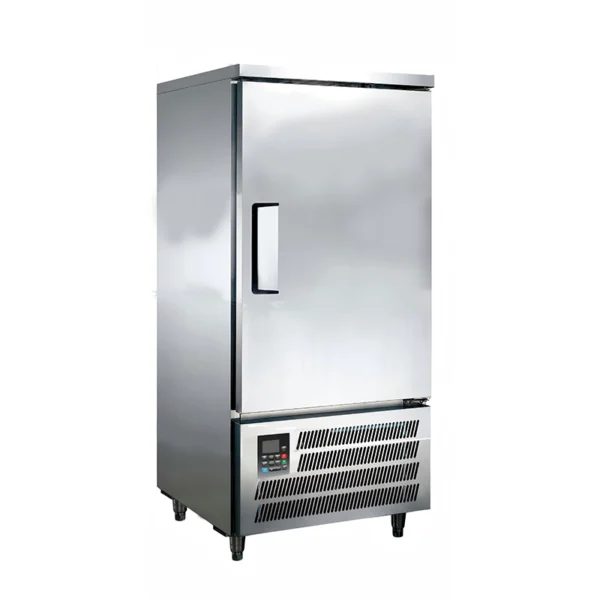

- Sturdy stainless steel tray columns accommodate 15 standard GN trays with 70mm (2.8 in) spacing, ensuring efficient use of internal space.
Doors
- Stainless steel door with a smooth, easy-to-clean finish, complementing commercial kitchen aesthetics.
- Sealed self-closing door with removable, washable gaskets to prevent cold air leakage, maintaining internal temperature stability.
- Magnetic hinges with automatic return function and 120° hold-open feature for convenient loading/unloading.
Shelving
- Tray columns are made of the same food-grade stainless steel as the interior, ensuring sturdiness, durability, and easy maintenance. (Trays not included)
Lighting
- Optional interior LED lighting for clear visibility of stored items, even in low-light kitchen environments.
Model Features
- External digital temperature display with switchable Celsius (°C)/Fahrenheit (°F), allowing real-time monitoring of internal conditions.
- Indicator lights for different cooling modes (soft rapid, hard rapid, flash cooling) for intuitive operation.
Electrical
- Pre-wired for AC 220V power supply (380V optional) with 50Hz frequency, compatible with standard commercial sockets. Includes power cord and plug kit.
- Standard plugs compliant with regional standards (European, British, etc.) available upon request.
Optional Features/accessories Upcharge And Lead Times May Apply.
- Optional configurations for different capacity specifications (3-tray, 5-tray, 10-tray) to flexibly meet various storage needs
- Additional shelving options (wire shelves, glass shelves, perforated shelves) for flexible storage.
- Adjustable feet or casters for easy mobility and positioning.
- Epoxy-coated evaporator for extra corrosion resistance in high-moisture settings.
- Custom dimensions, insulation thickness, and internal layout to fit specific kitchen spaces.
