Model | LFR16S | LFC16S | LFD16S |
Dim (W×D×H, mm) | 780×880×1760 | 780×880×2000 | 780×880×2000 |
Dim (W×D×H, in) | 30.7×34.6×69.3 | 30.7×34.6×78.7 | 30.7×34.6×78.7 |
Temp. (°C) | 26~82°C | 4~10°C | -12~-18°C |
Temp. (°F) | 79~180°F | 39~50°F | 10.4~-0.4°F |
Cooling Type | Hot Holding | Air-cooled | Air-cooled |
Power (W) | 850 | 400 | 780 |
Plates | 16×1/1GN | 16×1/1GN | 16×1/1GN |
Specifications subject to change without notice.
Design

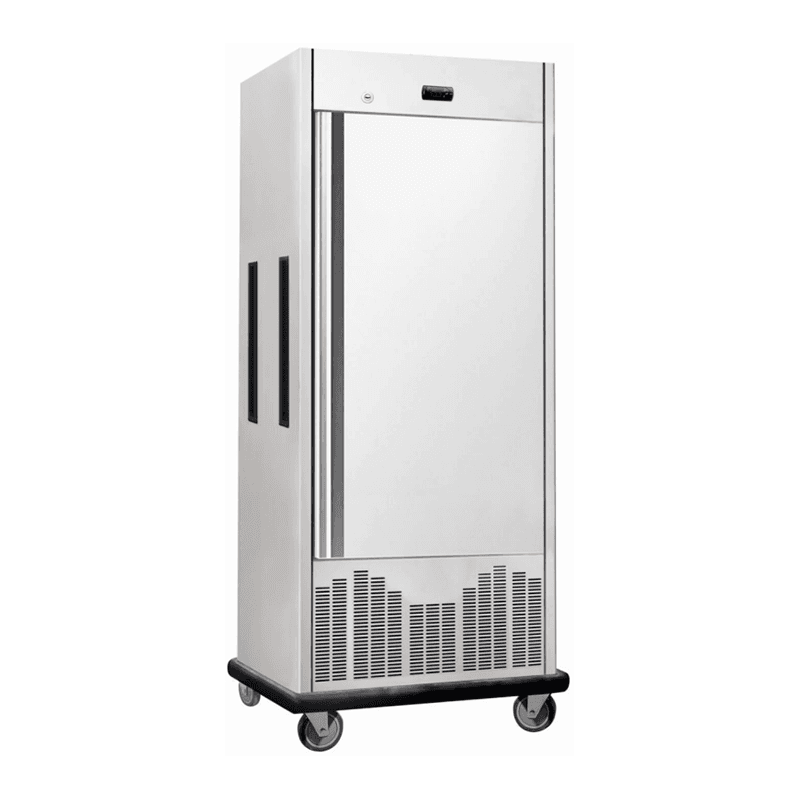

- ICOLDBOX's Banquet Active - Preservation Trolley features durable quality, offers customization services, effectively preserves food temperature and texture, and safeguards your long-term investment.
Refrigeration System
- The factory - independently designed capillary system utilizes an eco - friendly R290 hydrocarbon refrigerant (with zero ODP and low GWP), significantly cutting down greenhouse gas emissions to contribute to achieving “carbon neutrality”.
- The mature and high - quality refrigeration system is outfitted with a branded compressor, featuring high refrigeration efficiency along with energy - saving and emission - reduction capabilities.
- The optional variable - frequency temperature sensor allows for precise temperature control within 4°C to 10°C（39.2°F to 50°F） inside the cabinet, ensuring the optimal food preservation condition.
- Copper tube fin heat dissipation rapidly dissipates heat, keeping the equipment at the optimal working temperature, improving efficiency and enhancing stability and reliability.
- The condensing unit is installed at the bottom, facilitating maintenance and cleaning, and items can be placed on the top.
- Adopting the air - cooled refrigeration mode, it has the characteristics of fast cooling speed, precise temperature control, a frost - free and maintenance - free design, a good freshness - preservation effect, and more flexible storage space.
Cabinet Construction
- Exterior visible parts are made of high-quality stainless steel.
- Interior is made of high-quality stainless steel, anti-corrosive, durable and easy to clean.
- Insulation - The entire cabinet structure and solid doors are foamed on - site with high - density polyurethane insulation material. The thickness is increased by 20%, effectively enhancing the thermal insulation performance for better energy - saving. Its Ozone Depletion Potential (ODP) and Global Warming Potential (GWP) are both zero.
- High-quality stainless steel insert pan columns can hold 16 standard GN pans(Adjustable, heavy-duty chrome-plated wire shelves customizable on demand)
Doors
- Stainless steel housing with fine sandblasted finish ensures a smooth, aesthetically pleasing appearance that's easy to clean.
- Sealed self-closing door with high-quality detachable & cleanable door seals ensures excellent sealing to prevent cold air leakage.
- Magnetic door hinge chain; automatic return hinge with positive sealing self-closing function and 120° open hold feature.
Shelving
- The tray - inserting columns are made of the same material as the interior of the cabinet, featuring sturdiness, durability, and easy - to - clean property. (Trays not included)
Lighting
- Optional interior LED lighting
Model Features
- External digital temperature display with selectable Fahrenheit (°F)/Celsius (°C).
- Evaporator with optional epoxy resin coating for anti-corrosion and durability.
Electrical
- The equipment is factory pre-wired for direct connection to a single-phase 220V power supply with 10A/16A dedicated sockets. Includes power cord and plug kit.
- Standard triangular plug (connectors compliant with relevant standards of different countries are available).
Optional Features/accessories Upcharge And Lead Times May Apply.
- Variable frequency temperature sensor (optional)
- Evaporator with optional epoxy resin coating
- Optional interior LED lighting
- Can be additionally equipped with adjustable, heavy-duty chrome-plated wire shelves
- Connectors customizable for European, British standards, etc.
- Capacity, thickness, material and internal structure all customizable
