Cooling Type:Direct-Cooled
Cooling Type:Air-Cooled | ||||||||||||
Model | WF020C2 | WF030C2 | WF040C2 | WF020D2 | WF030D2 | WF040D2 | WZ020C2 | WZ030C2 | WZ040C2 | WZ020D2 | WZ030D2 | WZ040D2 |

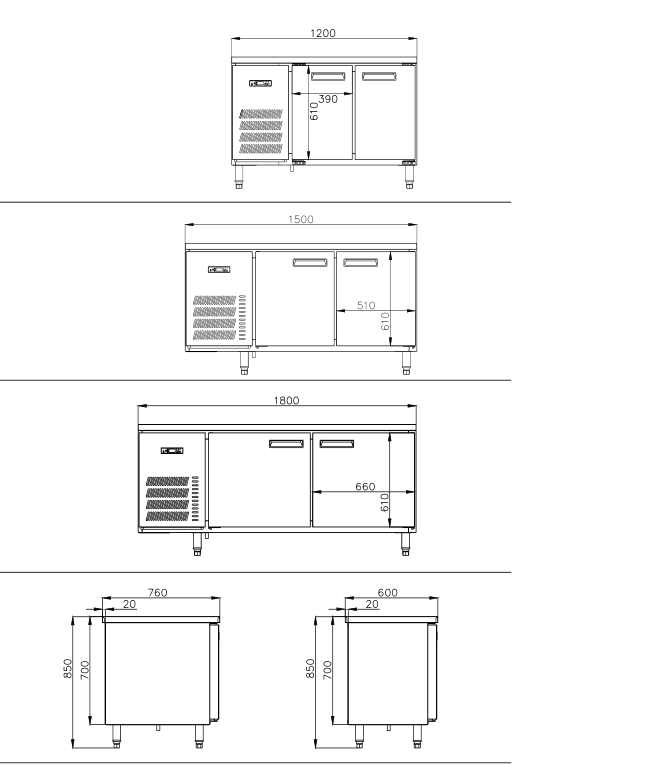

Dim (W×D×H, mm) | 1200×760×850 | 1500×760×850 | 1800×760×850 | 1200×760×850 | 1500×760×850 | 1800×760×850 | 1200×300×850 | 1500×300×850 | 1800×300×850 | 1200×300×850 | 1500×300×850 | 1800×300×850 |
Dim (W×D×H, in) | 47.2×30.0×33.5 | 59.1×30.0×33.5 | 70.9×30.0×33.5 | 47.2×30.0×72.8 | 59.1×30.0×72.8 | 70.9×30.0×72.8 | 47.2×30.0×72.8 | 59.1×30.0×72.8 | 70.9×30.0×72.8 | 47.2×30.0×72.8 | 59.1×30.0×72.8 | 70.9×30.0×72.8 |
Temp.(°C) | 0~5°C | 0~5°C | 0~5°C | 0~5°C | 0~5°C | 0~5°C | -12~-18°C | -12~-18°C | -12~-18°C | -12~-18°C | -12~-18°C | -12~-18°C |
Temp.(°F) | 32~41°F | 32~41°F | 32~41°F | 32~41°F | 32~41°F | 32~41°F | 10.4~-0.4°F | 10.4~-0.4°F | 10.4~-0.4°F | 10.4~-0.4°F | 10.4~-0.4°F | 10.4~-0.4°F |
Volume(L) | 200L | 300L | 400L | 200L | 300L | 400L | 200L | 300L | 400L | 200L | 300L | 400L |
Power(w) | 300W | 350W | 400W | 400W | 450W | 450W | 200W | 270W | 300W | 350W | 400W | 400W |
fast cooling, precise temperature control, frost – free and maintenance – free design, good freshness preservation, and flexible storage space | ||||||||||||
Specifications subject to change without notice.
Design
- ICOLDBOX is committed to using high-quality materials and efficient refrigeration systems, continuously updating production processes and technologies to provide users with lower product temperatures, lower usage costs, excellent food safety, and the best personalized customization services to achieve the most suitable solutions.
Refrigeration System
- The factory - independently designed capillary system utilizes an eco - friendly R290 hydrocarbon refrigerant (with zero ODP and low GWP), significantly cutting down greenhouse gas emissions to contribute to achieving “carbon neutrality”.
- The mature and high - quality refrigeration system is outfitted with a branded compressor, featuring high refrigeration efficiency along with energy - saving and emission - reduction capabilities.
- The optional variable - frequency temperature sensor allows for precise temperature control within 1°C inside the cabinet, ensuring the optimal food preservation condition.
- Copper tube fin heat dissipation rapidly dissipates heat, keeping the equipment at the optimal working temperature, improving efficiency and enhancing stability and reliability.
- Condenser unit offers optional left or right installation for flexible space adaptation.
- Two refrigeration methods are available: Air-cooled refrigeration: Features fast cooling speed, precise temperature control, frost-free and maintenance-free operation, excellent fresh-keeping effect, and more flexible storage space. The price and operating noise are slightly higher than those of direct-cooled refrigeration. Direct-cooled refrigeration: Boasts a simple structure for easy maintenance, low cost, good moisture retention, low noise, and relatively low energy consumption. However, regular defrosting is required.
Cabinet Construction
- Exterior visible parts are made of high-quality stainless steel. The back and bottom panels are made of galvanized sheets (full stainless steel is also optional).
- The thickened top work surface and interior feature stainless steel construction – anti - corrosive, durable, and easy to clean.
- Optional Water-Retaining Strip (50mm/100mm/150mm) blocks spills, keeps workspace dry
- Insulation - The entire cabinet structure and solid doors are foamed on - site with high - density polyurethane insulation material. The thickness is increased by２０%, effectively enhancing the thermal insulation performance for better energy - saving. Its Ozone Depletion Potential (ODP) and Global Warming Potential (GWP) are both zero.
- High-quality stainless steel heavy-duty frame rails with multiple PVC-dipped wire shelves: durable, corrosion-resistant, and freely adjustable.
Doors
- Stainless steel housing with fine sandblasted finish ensures a smooth, aesthetically pleasing appearance that's easy to clean.
- Sealed self-closing door with high-quality detachable & cleanable door seals ensures excellent sealing to prevent cold air leakage.
- Magnetic door hinge chain; automatic return hinge with positive sealing self-closing function and 120° open hold feature.
Shelving
- Each door is equipped with 1 height-adjustable heavy-duty PVC-dipped wire shelves. The shelf support pillars are made of the same material as the cabinet interior.
Lighting
- Optional interior LED lighting
Model Features
- External digital temperature display with selectable Fahrenheit (°F)/Celsius (°C).
- Evaporator with optional epoxy resin coating for anti-corrosion and durability.
Electrical
- The equipment is factory pre-wired for direct connection to a single-phase 220V power supply with 10A/16A dedicated sockets. Includes power cord and plug kit.
- Standard triangular plug (connectors compliant with relevant standards of different countries are available).
Optional Features/accessories Upcharge And Lead Times May Apply.
- Removable cutting board with optional materials (sanitary high-density white polyethylene or stainless steel)
- Optional stainless steel back/bottom panels
- Refrigeration method optional (direct-cooled or air-cooled)
- Variable frequency temperature sensor (optional)
- Evaporator with optional epoxy resin coating
- Optional interior LED lighting
- Additional shelves (optional stainless steel wire shelves, glass shelves, perforated shelves)
- Supports and casters customizable as required
- Connectors customizable for European, British standards, etc.
- The length, width, height, style, insulation layer thickness, stainless steel material (304, 201), refrigeration method, internal structure, and other special requirements can all be customized.
