Cooling Type:Direct-Cooled
Model | PZ1200F2 | PZ1500F3 | PZ1800F3 | PZ2100F4 | WF1500C2-PZ | WF1800C3-PZ | WF2100C3-PZ |

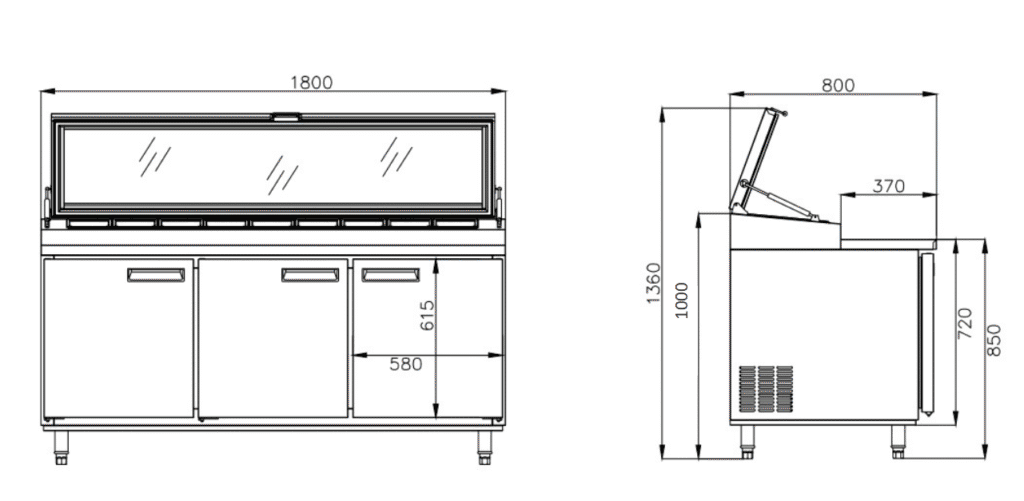

Dim (W×D×H, mm) | 1200x800x1000 | 1500x800x1000 | 1800x800x1000 | 2100x800x1000 | 1500x800x980 | 1800x800x980 | 2100x800x980 |
Dim (W×D×H, in) | 47.2″×31.5″×39.4″ | 59.1″×31.5″×39.4″ | 70.9″×31.5″×39.4″ | 82.7″×31.5″×39.4″ | 59.1″×31.5″×38.6″ | 70.9″×31.5″×38.6″ | 82.7″×31.5″×38.6″ |
Temp (°C) | 0-5°C | 0-5°C | 0-5°C | 0-5°C | 0-5°C | 0-5°C | 0-5°C |
Temp (°F) | 32-41°F | 32-41°F | 32-41°F | 32-41°F | 32-41°F | 32-41°F | 32-41°F |
Volume(L) | 200 | 300 | 400 | 500 | 300 | 400 | 500 |
Cooling Type | Air-cooled | Air-cooled | Air-cooled | Air-cooled | Air-cooled | Air-cooled | Air-cooled |
Power(W) | 450 | 500 | 600 | 650 | 500 | 600 | 650 |
Plates | 5×1/3 GN pans | 7×1/3 GN pans | 9×1/3 GN pans | 10×1/3 GN pans | 6×1/3 GN pans | 9×1/3 GN pans | 12×1/3 GN pans |
Specifications subject to change without notice.
Design
- ICOLDBOX is committed to using high-quality materials and efficient refrigeration systems, continuously updating production processes and technologies to provide users with lower product temperatures, lower usage costs, excellent food safety, and the best personalized customization services to achieve the most suitable solutions.
Refrigeration System
- The factory - independently designed capillary system utilizes an eco - friendly R290 hydrocarbon refrigerant (with zero ODP and low GWP), significantly cutting down greenhouse gas emissions to contribute to achieving “carbon neutrality”.
- The mature and high - quality refrigeration system is outfitted with a branded compressor, featuring high refrigeration efficiency along with energy - saving and emission - reduction capabilities.
- The optional variable - frequency temperature sensor allows for precise temperature control within 1°C inside the cabinet, ensuring the optimal food preservation condition.
- Copper tube fin heat dissipation rapidly dissipates heat, keeping the equipment at the optimal working temperature, improving efficiency and enhancing stability and reliability.
- The condensing unit is installed at the back, saving lateral space, and achieving an attractive and concealed appearance.
- Adopting the air - cooled refrigeration mode, it has the characteristics of fast cooling speed, precise temperature control, a frost - free and maintenance - free design, a good freshness - preservation effect, and more flexible storage space.
Cabinet Construction
- Exterior visible parts are made of high-quality stainless steel. The back and bottom panels are made of galvanized sheets (full stainless steel is also optional).
- The thickened top work surface and interior feature stainless steel construction – anti - corrosive, durable, and easy to clean.

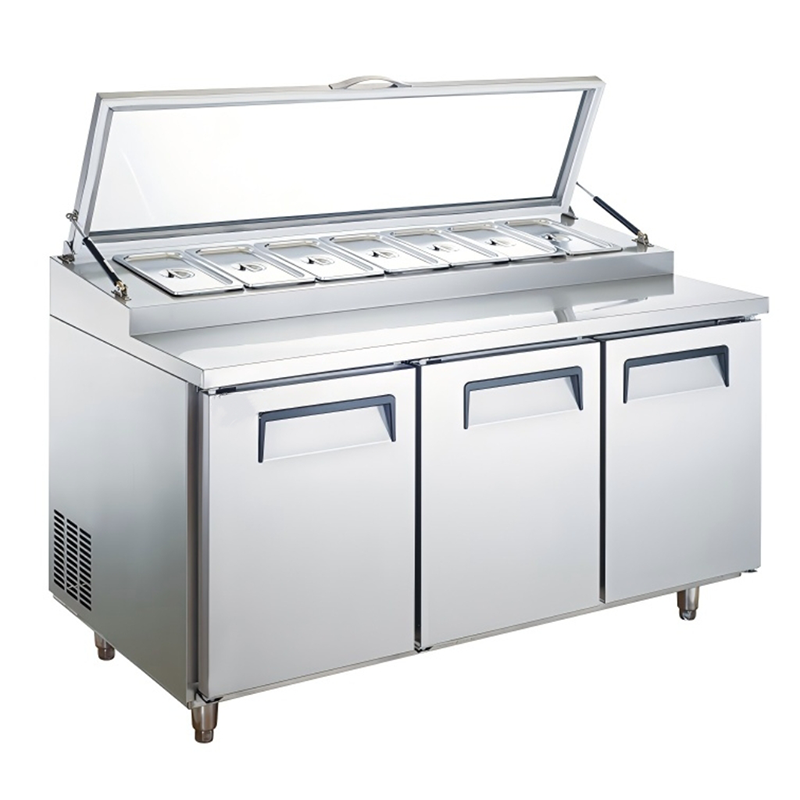

- Equipped with 7 x 1/3 GN standard pans, flexibly fitting various Pizza salads, side dishes, sauces, etc., to meet the needs of bulk storage or display.
- Acrylic lid prevents dust and debris from entering the food tray, helping keep food warm and fresh.
- Insulation - The entire cabinet structure and solid doors are foamed on - site with high - density polyurethane insulation material. The thickness is increased by 20%, effectively enhancing the thermal insulation performance for better energy - saving. Its Ozone Depletion Potential (ODP) and Global Warming Potential (GWP) are both zero.
Doors
- Stainless steel housing with fine sandblasted finish ensures a smooth, aesthetically pleasing appearance that's easy to clean.
- Sealed self-closing door with high-quality detachable & cleanable door seals ensures excellent sealing to prevent cold air leakage.
- Magnetic door hinge chain; automatic return hinge with positive sealing self-closing function and 120° open hold feature.
Shelving
- Each door is equipped with 1 height-adjustable heavy-duty PVC-dipped wire shelves. The shelf support pillars are made of the same material as the cabinet interior.
Lighting
- Optional interior LED lighting
Model Features
- External digital temperature display with selectable Fahrenheit (°F)/Celsius (°C).
- Evaporator with optional epoxy resin coating for anti-corrosion and durability.
Electrical
- The equipment is factory pre-wired for direct connection to a single-phase 220V power supply with 10A/16A dedicated sockets. Includes power cord and plug kit.
- Standard triangular plug (connectors compliant with relevant standards of different countries are available).
Optional Features/accessories Upcharge And Lead Times May Apply.
- Optional stainless steel back/bottom panels
- Refrigeration method optional (direct-cooled or air-cooled)
- Variable frequency temperature sensor (optional)
- Evaporator with optional epoxy resin coating
- Optional interior LED lighting
- Additional shelves (optional stainless steel wire shelves, glass shelves, perforated shelves)
- Supports and casters customizable as required
- Connectors customizable for European, British standards, etc.
- The length, width, height, style, insulation layer thickness, stainless steel material (304, 201), refrigeration method, internal structure, and other special requirements can all be customized.
